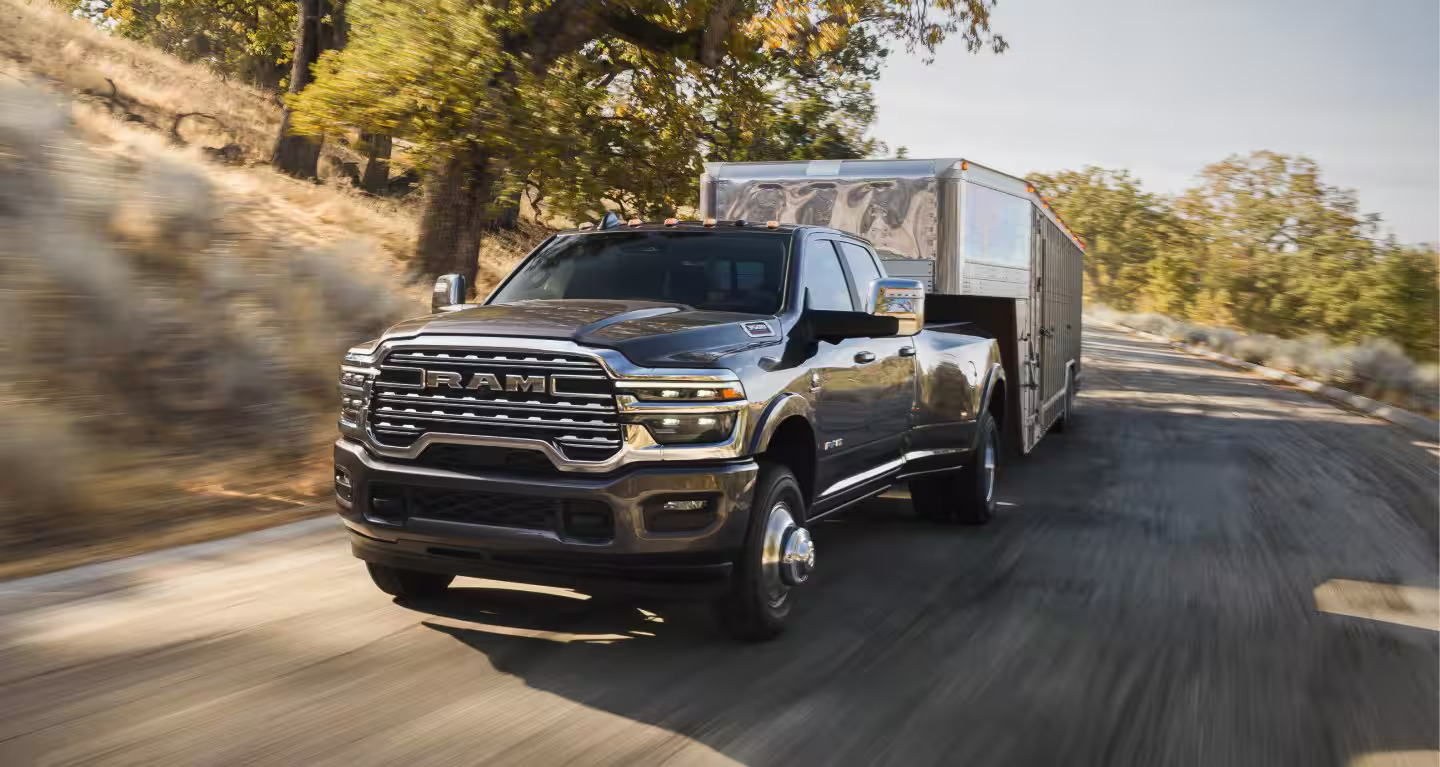

2027 Ram 3500 Trailering Guide: Receiver, Fifth-Wheel and Gooseneck Hitches
The 2027 Ram 3500 with the High-Output 6.7L Cummins diesel tows up to 37,020 lbs. That number is 18,880 lbs more than the gas HEMI V8 configuration can pull. This page breaks down every hitch type available on the 3500, with current inventory at Fillback.
What Makes the 2027 Ram 3500 a Trailering Standout
The 3500’s trailering capability rests on two distinct powertrains. The base 6.4L HEMI V8 produces 405 hp and 429 lb-ft of torque, paired to the TorqueFlite 8HP75-LCV 8-speed automatic, and pulls up to 18,140 lbs. The available High-Output 6.7L Cummins Turbo Diesel I6 pushes 430 hp and a best-in-class 1,075 lb-ft of torque at just 1,800 rpm, paired to the TorqueFlite HD 8AP1075 8-speed automatic, and stretches that ceiling to 37,020 lbs.
2027 Ram 3500 towing specifications
That diesel torque figure matters to hitch choice. Gooseneck and fifth-wheel applications load weight directly over the rear axle, and the 3500 uses an AAM 12.0-inch beam rear axle in Max Tow configurations to handle the load. The standard rear axle is an AAM 11.5-inch beam unit. Both setups use hydro-boost braking on diesel models, giving better pedal feel under heavy trailer weight than a vacuum-assist system. Payload on the diesel 3500 reaches 6,460 lbs, while the HEMI V8 version offers up to 7,580 lbs of payload when properly equipped.
2027 Ram 3500 full specs and trim breakdown
An integrated trailer brake controller comes standard across all 3500 trims. Snowplow Prep capability is also standard, which signals the reinforced electrical architecture that supports trailer lighting and auxiliary systems. The 220-amp alternator on higher trims further supports accessory and brake controller loads.
Powertrain and Trailering Overview
| Specification | 6.4L HEMI V8 | High-Output 6.7L Cummins Turbo Diesel I6 |
|---|---|---|
| Horsepower | 405 hp | 430 hp |
| Torque | 429 lb-ft | 1,075 lb-ft |
| Transmission | TorqueFlite 8HP75-LCV 8-speed automatic | TorqueFlite HD 8AP1075 8-speed automatic |
| Maximum Towing | Up to 18,140 lbs | Up to 37,020 lbs |
| Maximum Payload | Up to 7,580 lbs | Up to 6,460 lbs |
| Trailer Brake Controller | Standard | Standard |
How Each Hitch Type Works on the Ram 3500
Receiver Hitch
A conventional receiver hitch mounts to the frame behind the bumper and accepts a ball mount, weight-distribution head, or sway-control bar. The 3500’s robust ladder-type frame provides a solid foundation. Receiver hitches work best with conventional travel trailers, toy haulers, boat trailers, car haulers, and utility trailers. On the gas HEMI V8 3500, this is the primary hitch setup, capable of up to 18,140 lbs when properly configured with the 4.10 axle ratio. Tongue weight management and a weight-distribution hitch are required for heavier conventional trailers to keep the front axle planted and the trailer tracking cleanly.
Fifth-Wheel Hitch
A fifth-wheel hitch mounts in the truck bed on a kingpin coupling and distributes pin weight, typically 15 to 25 percent of trailer weight, directly over the rear axle. This setup is the standard choice for large RVs, horse trailers, and heavy livestock trailers because it puts the pivot point closer to the axle, reducing trailer sway compared to a receiver ball mount. The Ram 3500 diesel’s 37,020-lb ceiling makes it the right platform for the largest fifth-wheel trailers on the market.
For 2027, the Factory Fifth-Wheel/Gooseneck Prep Package is available across multiple 3500 trims. This package includes a factory-installed rear-axle structural crossmember with integrated mounting hardware that accommodates standard fifth-wheel rail systems. The crossmember is structural, not a bolt-on afterthought, meaning pin weight loads transfer directly into the frame rather than through the bed floor.

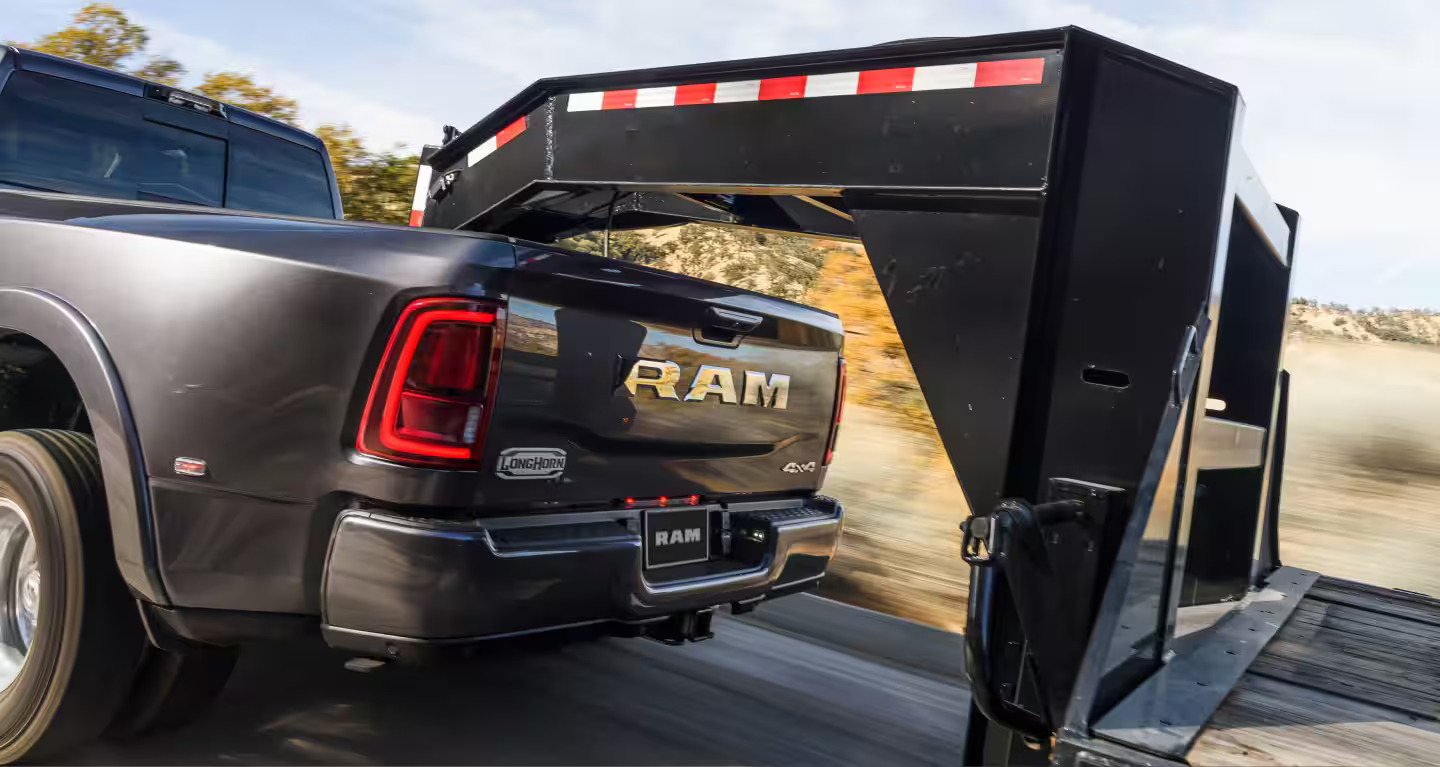

Gooseneck Hitch
A gooseneck hitch uses a ball-and-coupler design mounted in the center of the bed, similar in floor placement to a fifth-wheel but with a different coupling mechanism. Gooseneck is the dominant choice for agricultural applications: livestock trailers, flatbed equipment trailers, and grain haulers. The coupler attaches to a ball typically mounted through the bed floor on a drop-hitch bracket, allowing easy removal when the hitch is not in use.
The same Fifth-Wheel/Gooseneck Prep Package that enables fifth-wheel use also preps the 3500 for gooseneck application. The factory rear-axle structural crossmember includes mounting holes for both fifth-wheel rail brackets and a gooseneck ball. For farmers hauling grain out of western Wisconsin or cattlemen moving livestock between Boscobel and Prairie du Chien, gooseneck configuration on the diesel 3500 is the practical choice. The bed-mounted seven-pin connector and mounting-hole covers complete the factory prep.
Across the Trims: Hitch and Towing Hardware Availability
The 2027 Ram 3500 lineup runs from Tradesman through Limited Longhorn, spanning Tradesman, Black Express, Warlock, Big Horn, Laramie, Rebel, Power Wagon, Limited, and Limited Longhorn. Hitch-related hardware availability shifts meaningfully across those trims.
- Fifth-Wheel/Gooseneck Prep Package is available on Tradesman, Black Express, Warlock, Big Horn, Rebel, Laramie, Limited, and Limited Longhorn trims. It is also included in the Max Towing Package. Note that the Power Wagon does not offer this package.
- Max Towing Package (3500 DRW, diesel, Crew Cab or Mega Cab only) bundles the Fifth-Wheel/Gooseneck Prep Package with a cargo-view camera. It is available on Tradesman, Black Express, Warlock, Big Horn, Laramie, Limited, and Limited Longhorn. On Laramie, Limited, and Limited Longhorn, it also adds the auto-leveling rear air suspension. This suspension lowers the truck to ease trailer coupling and raises it to the correct tow height before departure, a meaningful time-saver when hitching a fifth-wheel or gooseneck daily.
- Integrated Trailer Brake Controller is standard on all trims.
- Trailer Tire Pressure Monitoring is available via the Tow Technology Group, delivering live readings to the available 12-inch Digital Cluster Display for up to four trailers.
- Trailer Reverse Steering Control is available through the Tow Technology Plus Group. This system lets the driver use a steering knob to direct the trailer while the truck’s steering wheel responds automatically, eliminating the counter-intuitive inputs required to back a fifth-wheel or gooseneck into a loading dock or campsite.
- Blind-Spot Monitoring with Trailer Tow Detection System is standard on Power Wagon and Rebel, and standard on Laramie, Limited Longhorn, and Limited. It is available on Tradesman, Black Express, Warlock, and Big Horn through the Safety Group.
- Class-exclusive heated power convex trailer tow mirrors with power-folding, power-telescoping, and memory are available. These mirrors extend to provide visibility alongside a wide fifth-wheel or gooseneck trailer body, which can easily exceed 8 feet wide.
The available 50-gallon fuel tank, on Crew Cab models with the 8-foot bed, is a significant asset for long hauls. Less time at fuel stops means more time on-task for operators running heavy fifth-wheel or gooseneck loads across western Wisconsin.

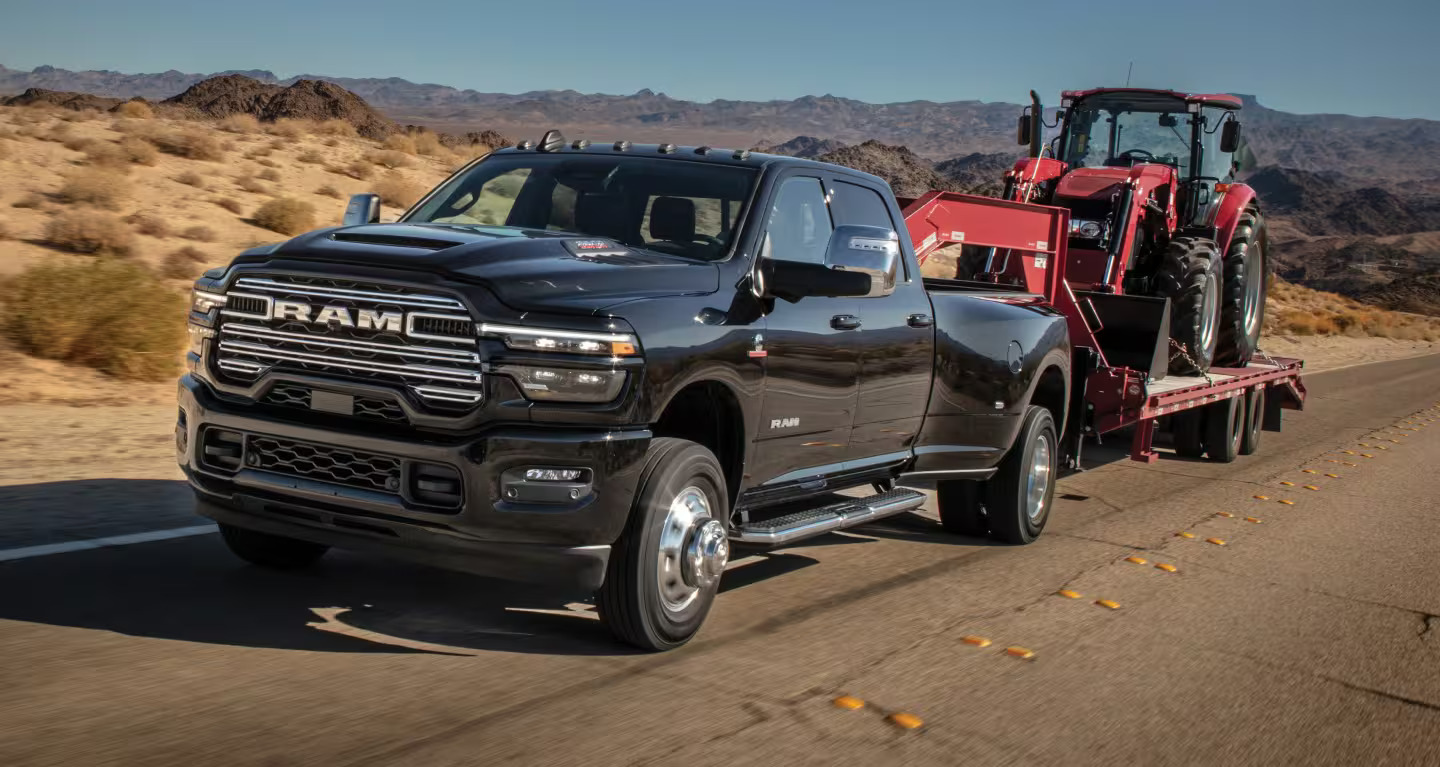

Real-World Trailering Benefit for Fillback Customers
For operators in Richland Center, Prairie du Chien, and Boscobel, the choice between hitch types comes down to what they pull.
A dairy or beef producer moving cattle on a gooseneck livestock trailer benefits most from the diesel 3500’s 1,075 lb-ft of torque at 1,800 rpm. That low-rpm torque lets the engine pull through uphill grades on Wisconsin’s rolling terrain without excessive downshifting or elevated exhaust temperatures. The 3.42 rear axle ratio paired with the TorqueFlite HD 8-speed optimizes this delivery: taller final drive ratios in gears 1 through 6 for towing confidence, and a numerically lower ratio in gears 7 and 8 for highway efficiency on longer interstate runs.
An RV owner pulling a large fifth-wheel benefits from the Trailer Reverse Steering Control and the 12-inch Digital Cluster’s Trailer Tow Pages, which display brake status and trailer tire pressure in one view. The 360-degree surround view camera system, available through the Tow Technology Group, provides a bird’s-eye reference when backing into a tight campsite.
A contractor pulling a flatbed equipment trailer on a receiver hitch benefits from the standard Automatic Smart Exhaust Brake, which uses engine braking on descents to reduce service brake heat and fade when trailing heavy loads down grades.
The available RamBox cargo management system keeps hitch accessories, safety chains, and load-binder chains secured with LED lighting and lockable access, a practical detail when unloading at a remote job site after dark.
How the 2027 Ram 3500 Compares for Hitch-Specific Capability
No competitor in the one-ton segment matches the Ram 3500 diesel’s 37,020-lb tow rating with a factory fifth-wheel/gooseneck prep package installed. Rivals offer fifth-wheel and gooseneck prep as dealer-installed or aftermarket additions; Ram’s factory-installed rear-axle structural crossmember integrates the load path into the frame at the assembly stage. The 7,580-lb payload ceiling on the gas 3500 is relevant for contractors who need maximum bed load alongside a receiver hitch setup, since gooseneck pin weight reduces available payload directly.
The Trailer Reverse Steering Control is not available on every competitor truck, and the available factory mirror system with power-telescoping, power-folding, and memory is a class-exclusive feature. For buyers who hitch and unhitch multiple trailer types weekly, these features reduce setup time and operator frustration compared to trucks that require manual mirror adjustment.
Get Into a 2027 Ram 3500 at Fillback
Fillback serves buyers across Richland Center, Boscobel, Prairie du Chien, and the surrounding counties of southwestern Wisconsin. If you pull a gooseneck livestock trailer, a fifth-wheel RV, or a conventional equipment trailer on a receiver hitch, the 2027 Ram 3500 at Fillback has a configuration built for your specific load.
Frequently Asked Questions
Does the 2027 Ram 3500 come with fifth-wheel and gooseneck prep from the factory?
Yes. The Fifth-Wheel/Gooseneck Prep Package is a factory-available option on most 3500 trims, including Tradesman, Black Express, Warlock, Big Horn, Rebel, Laramie, Limited, and Limited Longhorn. It includes a factory-installed rear-axle structural crossmember with integrated mounting hardware, bed-mounted seven-pin connector, mounting holes for both fifth-wheel rail systems and a gooseneck ball, and mounting-hole covers. It is not available on the Power Wagon.
What is the maximum towing capacity of the 2027 Ram 3500?
The 2027 Ram 3500 tows up to 37,020 lbs when equipped with the High-Output 6.7L Cummins Turbo Diesel I6 engine and properly configured. The gas-powered 6.4L HEMI V8 version tows up to 18,140 lbs.
What is the Ram 3500 payload capacity for 2027?
The 2027 Ram 3500 HEMI V8 reaches up to 7,580 lbs of payload when properly equipped. The diesel version reaches up to 6,460 lbs. Gooseneck and fifth-wheel pin weight counts against available payload, so buyers should calculate pin weight before selecting a hitch configuration.
Is Trailer Reverse Steering Control available on the Ram 3500?
Yes. Trailer Reverse Steering Control is available on the Ram 3500 through the Tow Technology Plus Group, which is offered on all trims. The system uses a steering knob to direct the trailer while automatically controlling the truck’s steering wheel.
What fuel tank option supports long-distance trailering on the 2027 Ram 3500?
A best-in-class available 50-gallon fuel tank is offered on Crew Cab models with the 8-foot bed. This is a Ram-exclusive option in the segment and is relevant for diesel 3500 operators making long hauls on gooseneck or fifth-wheel loads.
Which Ram 3500 trims include the Blind-Spot Monitoring with Trailer Tow Detection?
Blind-Spot Monitoring with Trailer Tow Detection System is standard on Power Wagon, Rebel, Laramie, Limited Longhorn, and Limited. It is available on Tradesman, Black Express, Warlock, and Big Horn through the Safety Group.
Can I get the Max Towing Package on any 2027 Ram 3500?
The Max Towing Package is available on diesel-equipped 3500 DRW models in Crew Cab or Mega Cab configurations, on Tradesman, Black Express, Warlock, Big Horn, Laramie, Limited, and Limited Longhorn trims. It bundles the Fifth-Wheel/Gooseneck Prep Package, a cargo-view camera, and on Laramie, Limited, and Limited Longhorn, auto-leveling rear air suspension.
Where can I find a 2027 Ram 3500 near Richland Center, Boscobel, or Prairie du Chien?
Fillback Family of Dealerships sells Ram trucks at multiple locations serving southwestern Wisconsin, including Richland Center, Boscobel,and Prairie du Chien. Browse current 2027 Ram 3500 inventory using the link at the top of this page.
